Web Browsers

Web browsers are the windows to the World Wide Web, serving as the gateway through which we access the vast digital landscape. In this section, we'll explore web browsers, their essential components, and the pivotal role they play in ensuring a secure online experience.

The Web Browser: Your Digital Compass

A web browser is a software application designed to retrieve, render, and display content from the World Wide Web. It acts as an intermediary between users and the vast array of information available on the internet. Here's an overview of its primary functions:

• Fetching Web Pages: Browsers are responsible for sending requests to web servers, retrieving web pages, and rendering them for users to view.

• Rendering Content: They interpret HTML, CSS, and JavaScript to display web pages in a visually pleasing and interactive manner.

• Providing User Interface: Browsers offer user-friendly interfaces that include navigation controls, bookmarks, and settings to enhance the browsing experience.

Key Components of Web Browsers

Web browsers consist of several key components that work together to deliver a seamless and secure web experience. Below are a few components of Web Browser at a high level -

• User Interface (UI): This is what you see when you open your browser—menus, toolbars, address bars, and tabs. The UI provides navigation and control over your browsing experience.

• Rendering Engine: Also known as the layout engine, this component interprets HTML and CSS code, determining how web pages are displayed. Different browsers use different rendering engines, such as Blink (used by Google Chrome) and Gecko (used by Mozilla Firefox).

• Browser Engine: This part manages user interactions like typing in the address bar and managing bookmarks. It also communicates with the rendering engine to display web content.

• Networking: Browsers use networking components to send requests to web servers, receive responses, and load web pages. They support various network protocols like HTTP and HTTPS.

• JavaScript Engine: JavaScript is a vital component for interactivity on the web. Browsers include JavaScript engines like V8 (used by Chrome) and SpiderMonkey (used by Firefox) to execute JavaScript code.

• Data Storage: Browsers store data locally, including cookies, caches, and user preferences. This data helps improve page loading speed and user experience.

• Security Features: Browsers have multiple security layers to protect users from online threats. These include SSL/TLS support for secure connections, pop-up blockers, and privacy settings.

Browser Inspect Element & Their Components

Modern web browsers offer a toolset called "Inspect Elements", which allows users to explore and manipulate web pages' structure and behavior. It’s vital for web development, debugging, and understanding website performance.

For Web Security Engineers, these tools are essential for both exploitation and defense, helping to find vulnerabilities, conduct security audits, analyze traffic, and reinforce web defenses. They play a key role in crafting proof-of-concept attacks, responding to incidents, and ensuring the security of web applications.

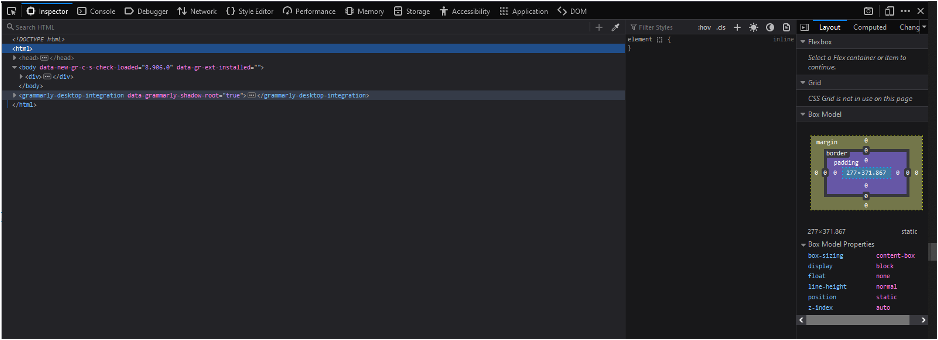

Inspector

The Inspector is the central component, allowing users to explore the Document Object Model (DOM) of a web page. It provides a visual representation of the page's structure and enables users to select and inspect specific elements.

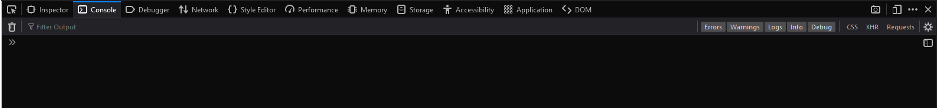

Console

The Console is a JavaScript console that displays errors, warnings, and log messages generated by the web page's JavaScript code. Developers use it to debug scripts and execute JavaScript commands interactively.

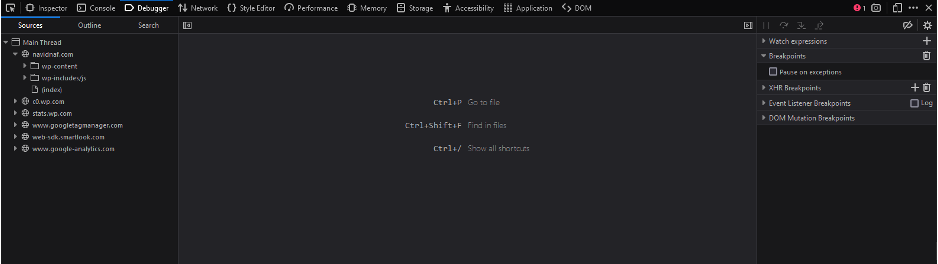

Debugger

The Debugger enables users to set breakpoints, step through JavaScript code, and inspect variables during script execution. It's a critical tool for identifying and fixing code issues.

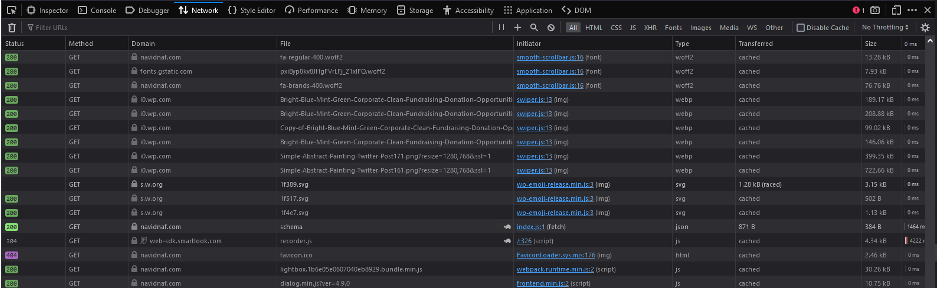

Network

The Network panel tracks all network requests made by the web page, including HTTP requests for resources like images, scripts, and stylesheets. It provides insights into loading times and resource sizes.

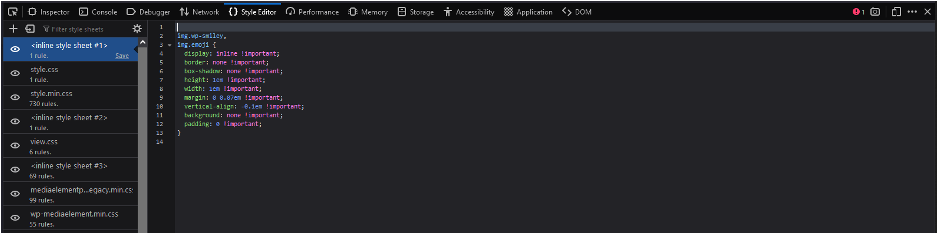

Style Editor

The Style Editor allows users to view and edit the CSS styles applied to a web page. It's useful for experimenting with design changes and diagnosing layout issues.

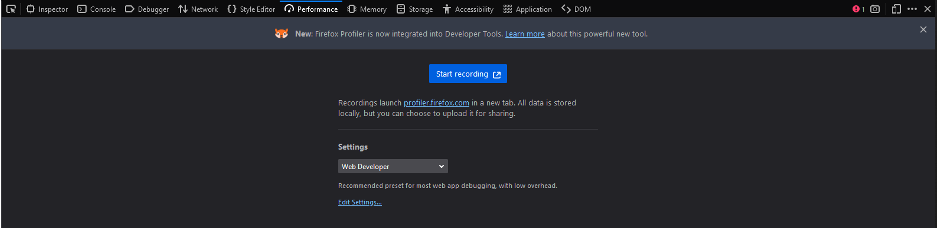

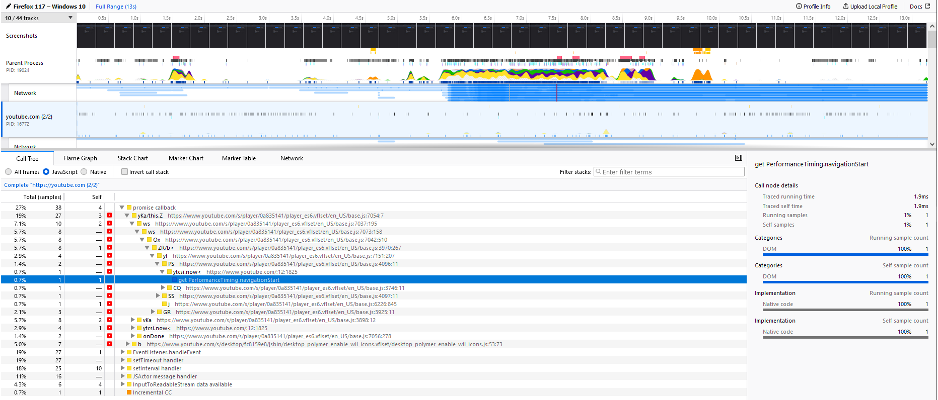

Performance

The Performance panel helps analyze a web page's performance. It records a timeline of events, including loading, scripting, rendering, and user interactions, to identify bottlenecks and optimize page speed.

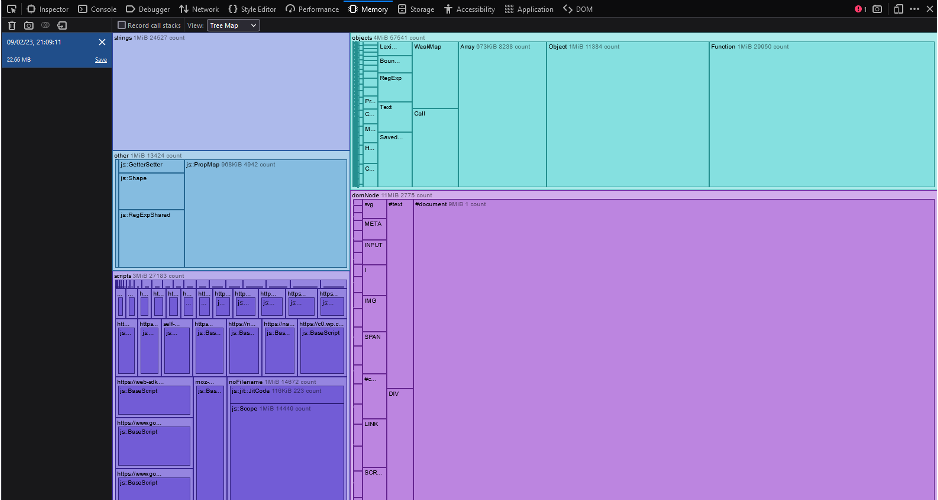

Memory

The Memory panel helps diagnose memory-related issues in JavaScript applications. It profiles memory usage, tracks memory leaks, and provides insights into how memory is allocated and released.

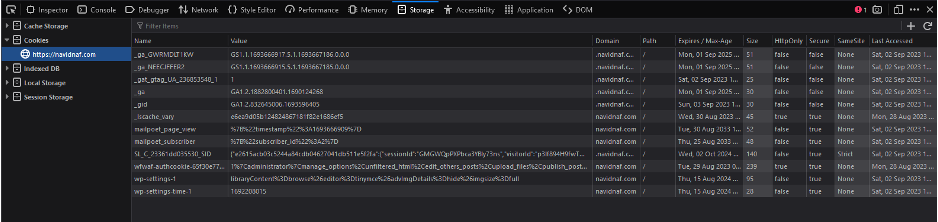

Storage

The Storage panel allows users to inspect and manipulate data stored by a web page, including cookies, local storage, and indexed databases. It's helpful for testing and debugging web applications.

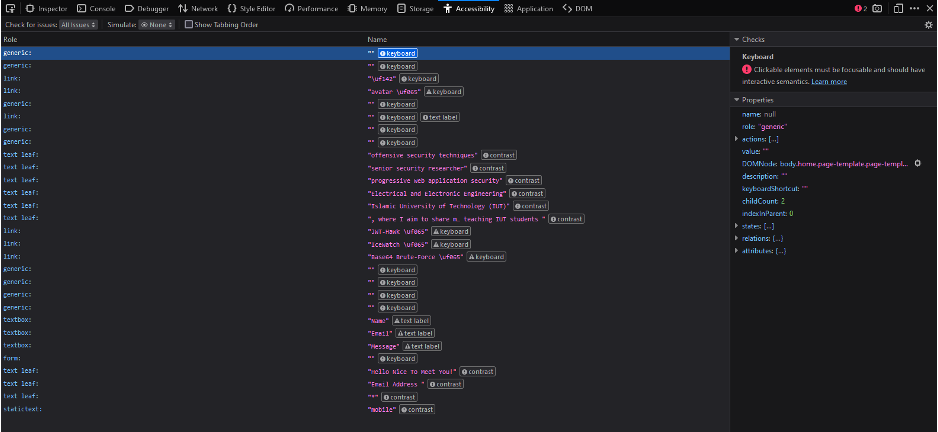

Accessibility

The Accessibility panel checks for web accessibility issues, ensuring that web content is usable by individuals with disabilities. It provides recommendations for improving accessibility.

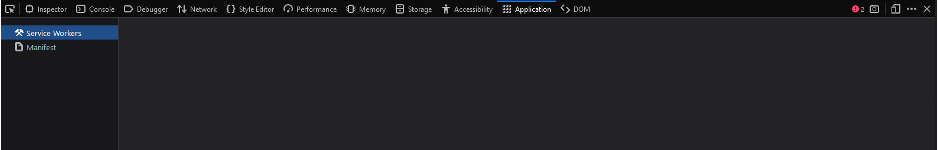

Application

The Application panel is used to inspect and manage browser-related data, such as service workers, cache storage, and manifest files. It's crucial for Progressive Web App (PWA) Development.

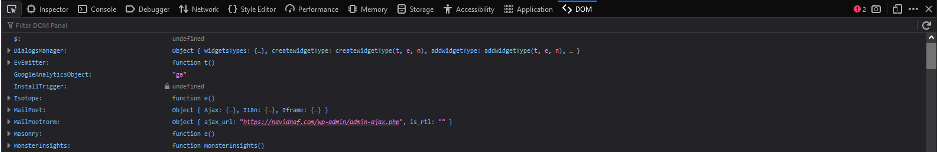

DOM (Document Object Model)

DOM tab within the Inspector allows users to explore the structure of a web page's HTML document. It shows the hierarchical representation of elements and their relationships.

These components collectively form the browser's inspect elements toolkit, providing developers with the means to analyze, debug, and optimize web pages and web applications.
